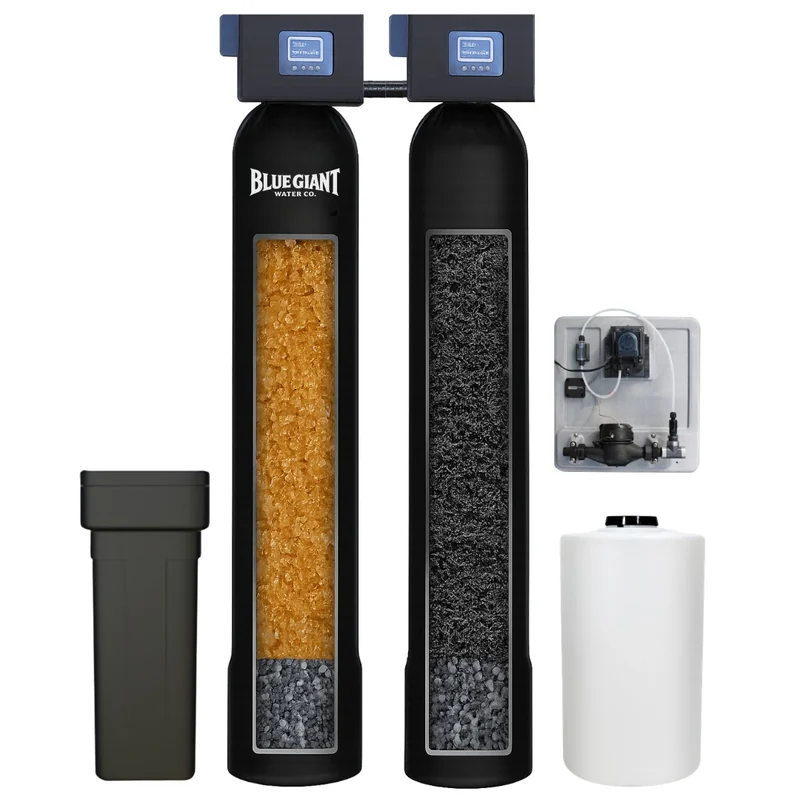

Dual Tank for Well Water
Built for iron, sulfur and that rotten-egg smell.
Well water is a different problem from city water. This system pairs a softening tank with a Katalox Light tank to pull out iron, manganese and hydrogen sulfide: the cause of the smell, the orange staining and the metallic taste. Two ProValves, one per tank.
Best for: Homes on a private well
Inside the system
Features
- Katalox Light media for iron, manganese and sulfur
- Removes the rotten-egg smell at its source
- Dedicated softening tank with USA-made resin
- Two Blue Giant ProValves, one per tank
- Coconut-shell carbon layer over the Katalox
- Free installation and a lifetime warranty
What this system targets
- Iron: the orange staining on fixtures and laundry
- Manganese: black or brown staining
- Hydrogen sulfide: the rotten-egg smell
- Hardness: scale on pipes and appliances
- Sediment and turbidity
- Chlorine and taste-and-odor compounds
Full specifications
Key specifications
| Configuration | Softening tank + Katalox Light tank + brine tank |
| Control valves | Two, one per tank |
| Targets | Iron, manganese, hydrogen sulfide, hardness |
| Second-tank media | Katalox Light with a coconut-shell carbon layer |
| Valve flow rate | 30 GPM |
| Brine / salt tank | 15" × 35" square |
| Bypass valve | 1" full-flow, included |
| Best suited to | Homes on a private well |
Operating requirements
| Operating pressure | 30 to 125 PSI |
| Water temperature | 40° to 110°F (4° to 43°C) |
| Electrical | 120V / 60Hz, 12V 650mA transformer |
| Inlet turbidity | Under 5 FTU |
| Service flow | 27 GPM at 15 PSI pressure drop |
| Backwash flow | 3.0 gal/min |
| Regeneration | Upflow counter-current, demand-initiated metering |
Components, sourcing & warranty
| Control valve | Blue Giant ProValve, ceramic disc valve with 72-hour memory backup |
| Mineral tank | Fiberglass pressure tank, made in USA |
| Softening resin | USA-made 10% crosslinked strong-acid cation resin, WQA Gold Seal |
| Carbon media | Granular activated coconut-shell carbon |
| Support bedding | NSF-certified polishing gravel |
| Assembly | Fort Worth, Texas |
| Certifications | NSF/ANSI 44, NSF/ANSI 42, NSF/ANSI 61 |
| Tank warranty | Lifetime: media tanks, storage tanks and brine tank |
| Ceramic disc warranty | Lifetime |
| Control valve warranty | 5 years: valve body and circuit board |
| Media warranty | 5 years: resin and carbon |
| Labor warranty | 1 year from date of purchase |
| Installation | Included, by our own installers, not subcontractors |
Warranty on this system
Specifications from the manufacturer's documentation. Component brands and certifications are those of their respective manufacturers. Full warranty terms and a printable spec sheet available on request.
