Home / Whole Home Systems / XL Whole-Home Softener + Filtration
Whole Home Systems

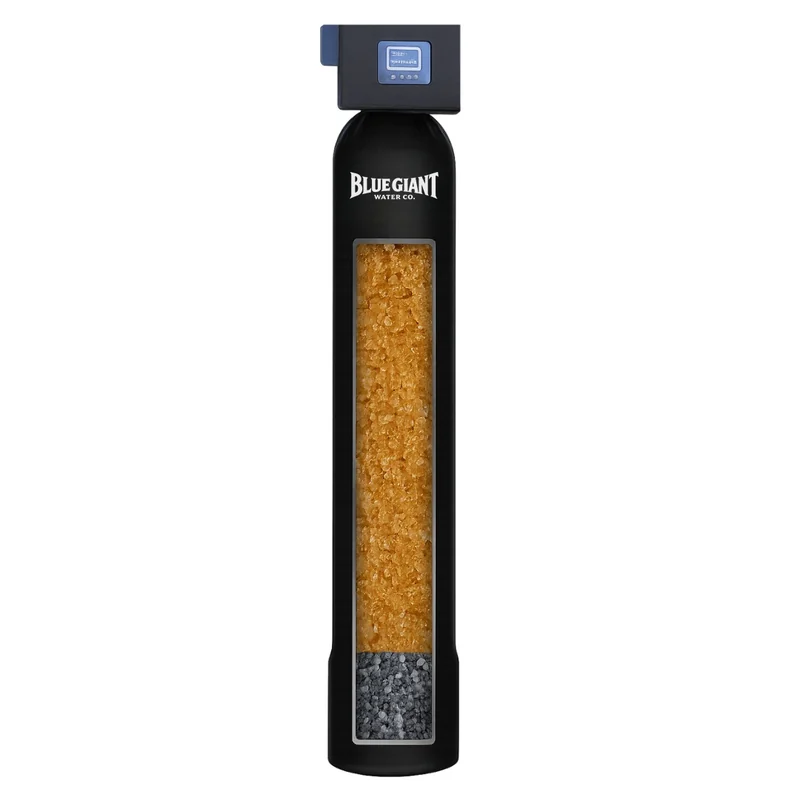

XL Whole-Home Softener + Filtration
64,000 grains. Same system, more capacity between regenerations.
Identical hardware to the Standard. The difference is real softening capacity, not a trim level. Built for larger homes, more people, or water hard enough that a 48,000 grain system would regenerate more often than you'd like.
Best for: Larger homes, bigger families, or harder water
Inside the system
Features
- 64,000 grain softening capacity
- Blue Giant ProValve with ceramic discs and 72-hour memory backup
- Granular activated coconut-shell carbon
- USA-made 10% crosslinked softening resin
- Fewer regenerations than the Standard on the same water
- Free installation and a lifetime warranty
What the carbon reduces
- Chlorine and chloramines
- THMs and disinfection byproducts
- PFAS / PFOA / PFOS
- VOCs: benzene, toluene, xylene
- Pesticides and herbicides
- Hydrogen sulfide odor
- Heavy metals
- Taste and odor compounds
Full specifications
Key specifications
| Softening capacity | 64,000 grains |
| Valve flow rate | 30 GPM |
| Service flow rate | 27 GPM |
| Media tank (D×H) | 12" × 52" |
| Media volume | 2 cu ft resin + carbon |
| Brine / salt tank | 15" × 35" square |
| Distributor tube | 1.25" high-flow |
| Bypass valve | 1" full-flow, included |
| Port connections | 1" NPT elbows |
| Best suited to | 4+ baths, or 8+ residents |
Operating requirements
| Operating pressure | 30 to 125 PSI |
| Water temperature | 40° to 110°F (4° to 43°C) |
| Electrical | 120V / 60Hz, 12V 650mA transformer |
| Inlet turbidity | Under 5 FTU |
| Service flow | 27 GPM at 15 PSI pressure drop |
| Backwash flow | 3.0 gal/min |
| Regeneration | Upflow counter-current, demand-initiated metering |
Components, sourcing & warranty
| Control valve | Blue Giant ProValve, ceramic disc valve with 72-hour memory backup |
| Mineral tank | Fiberglass pressure tank, made in USA |
| Softening resin | USA-made 10% crosslinked strong-acid cation resin, WQA Gold Seal |
| Carbon media | Granular activated coconut-shell carbon |
| Support bedding | NSF-certified polishing gravel |
| Assembly | Fort Worth, Texas |
| Certifications | NSF/ANSI 44, NSF/ANSI 42, NSF/ANSI 61 |
| Tank warranty | Lifetime: media tanks, storage tanks and brine tank |
| Ceramic disc warranty | Lifetime |
| Control valve warranty | 5 years: valve body and circuit board |
| Media warranty | 5 years: resin and carbon |
| Labor warranty | 1 year from date of purchase |
| Installation | Included, by our own installers, not subcontractors |
Warranty on this system
Specifications from the manufacturer's documentation. Component brands and certifications are those of their respective manufacturers. Full warranty terms and a printable spec sheet available on request.
Free water test
Book your water test
Half a minute to fill in. We'll call to find a time that works around you.
- Hardness, chlorine, TDS, iron and pH tested on the spot
- Written results you keep either way
- Evening and Saturday appointments available
Watch
Hardness and chlorine, side by side
Two separate problems, and how a single tank is built to take on both.
Hardness and chlorine, side by side
Your video goes here (YouTube or Vimeo embed)
More angles
Up close
Cutaway showing resin and carbon media in the XL system
(photo placeholder)
The complete XL system with brine tank and accessories
(photo placeholder)
